CNC High-Speed Drilling And Marking For Angles Model JX2532 (Patent

Model No.︰	-
Brand Name︰	FAST
Country of Origin︰	China
Unit Price︰	-
Minimum Order︰	1 pc

Total 19 Related Items

Product Description

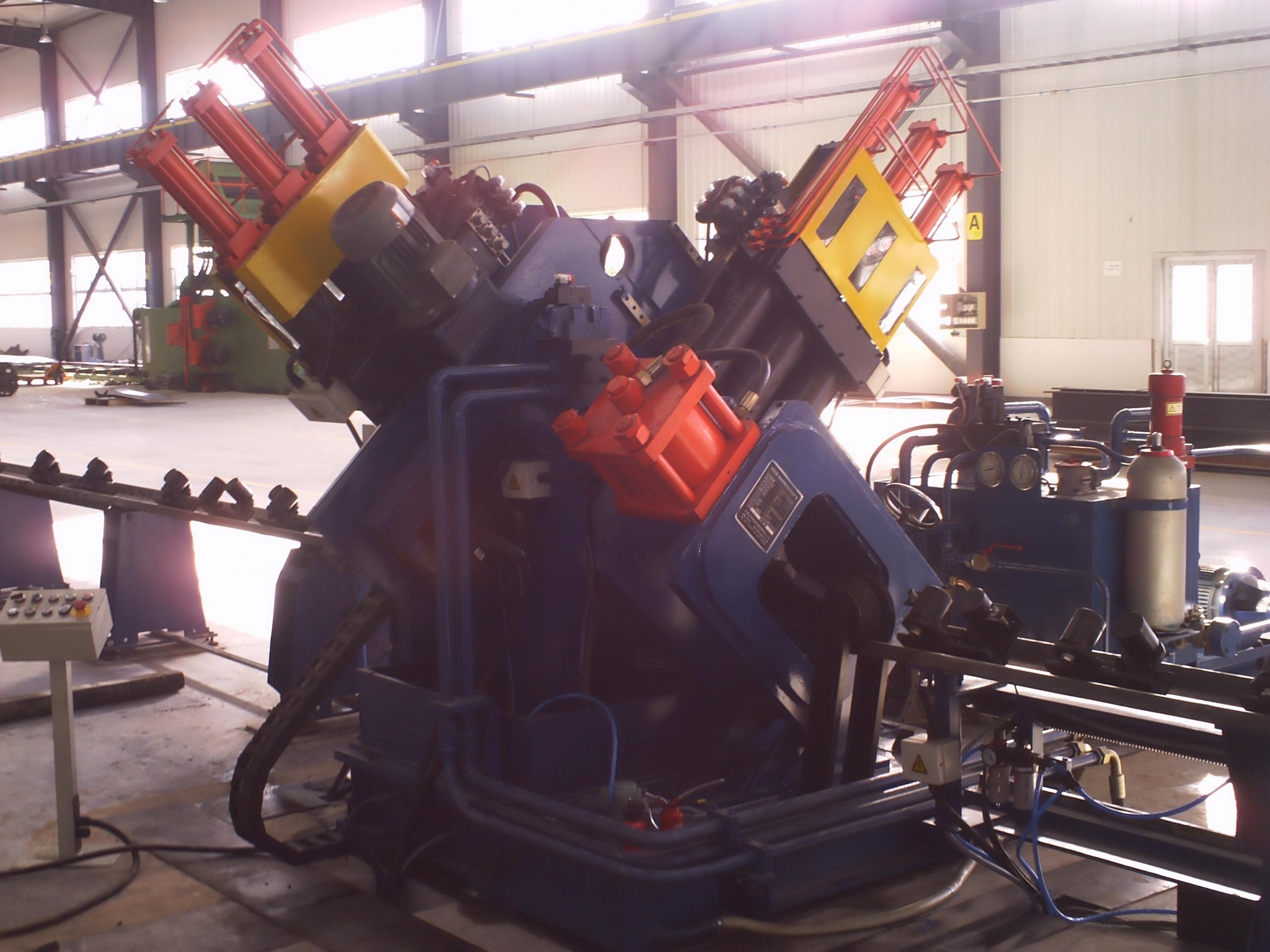

CNC High-Speed Drilling And Marking For Angles Model JX2532 (Patent), Angle Machine, Angle Marking Machine,CNC Machine for Steel Tower

DETAILS:

l CNC technology with servo motors in X/Y/Z three axes. 

l Integrated with hydraulic, pneumatic and mechanical elements, which are imported world-class components.

l Easy programing- can directly use the program data by sample software. 

l With function of self-diagnostic for failures. 

l Displaying the drawing of workpieces.

APPLICABLE INDUSTRY:

The machine is specially used for angle steel marking, punching and cutting mainly in the field of power and telecommunication industry.

ADVANTAGES:

l JX2532 is an Angle Drilling and Marking machine for 100*100*7~250*250*32mm. The machine is used for processing holes on angles. Marking and drilling are in automatic completeness. 

l The drilling unit has 3 different drilling spindles on feft and right side, it will choose the drilling spindle automatically.

l After the hole is proceed, upper hydraulic clamps are opened and the materials is positioned to the next drilling coordinates again. All these operations are repeated for the whole length of the materials.

l The angle processing line marking unit adopts rigid and compact structure. Marking stadia can be set at will such as with infinite punching rows.

l This angle line machine support and pressing device meets the requirements of processing angles with bigger bending. When editing, only need to input angles size, hole diameters, positions, and quantities by using CAD/CAM directly conversion. All finished angles can be unloaded by pneumatic turnover device.

Model	JX2532
Angle Size (mm)	1001008~25025032
Max. Workpiece Length (m)	14
Max. Drilling Diameter (mm)	Φ40
No. of Drill On Each Side (Piece)	3
Stroke of Main Spindle (mm)	240
Speed of Spindle (r/min)	180～760 Transduce stepless adjustable
CNC Axes	3
Marking Force (kN)	1030
NO. of Character Group (Piece)	4
No. of Character in Each Character Group (Piece)	18
Character Size (mm)	141020/12.52020 By customer’s request
Range of Stadia (mm)	48~220 (stepless)
Feeding Speed of Angle (m/mm)	30
Programming Mode	Input by keyboard, RS232 interface, floppy disk and USB interface
Working Accuracy	Accordance with GB2694-2003
Overall Dimension (m)	3072.6
Net Weight (kg)	16500

Hot Sale cnc machine for drilling, punching, milling, shearing, sawing, bending, roll forming, hole processing. The Machine is used for Plate, Angle, Flange, Connection Boards.
